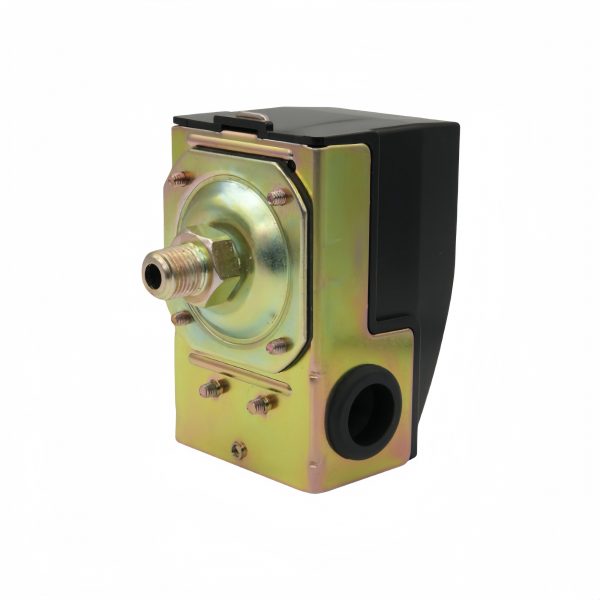

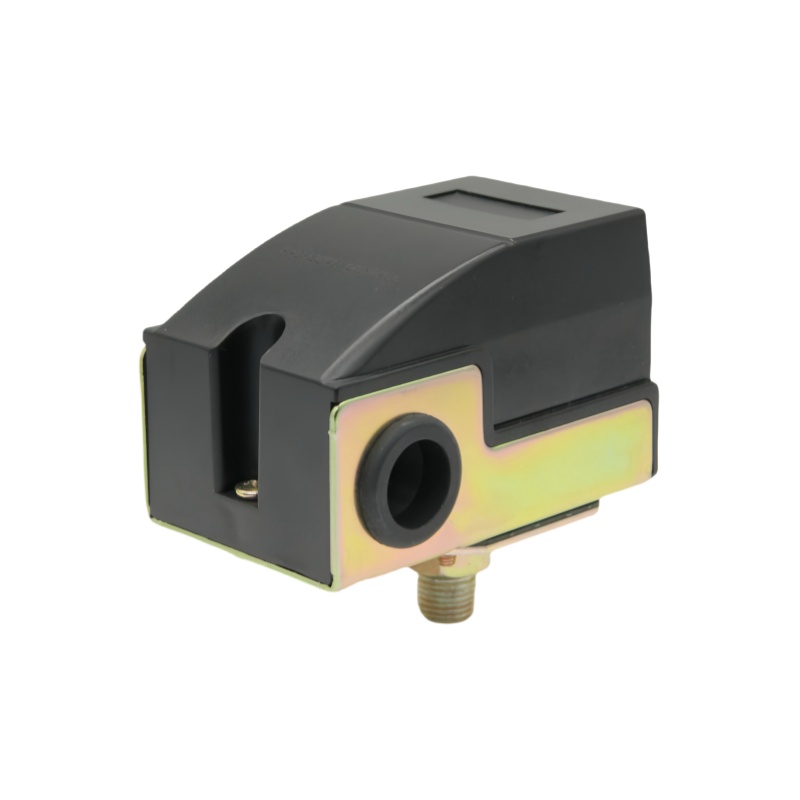

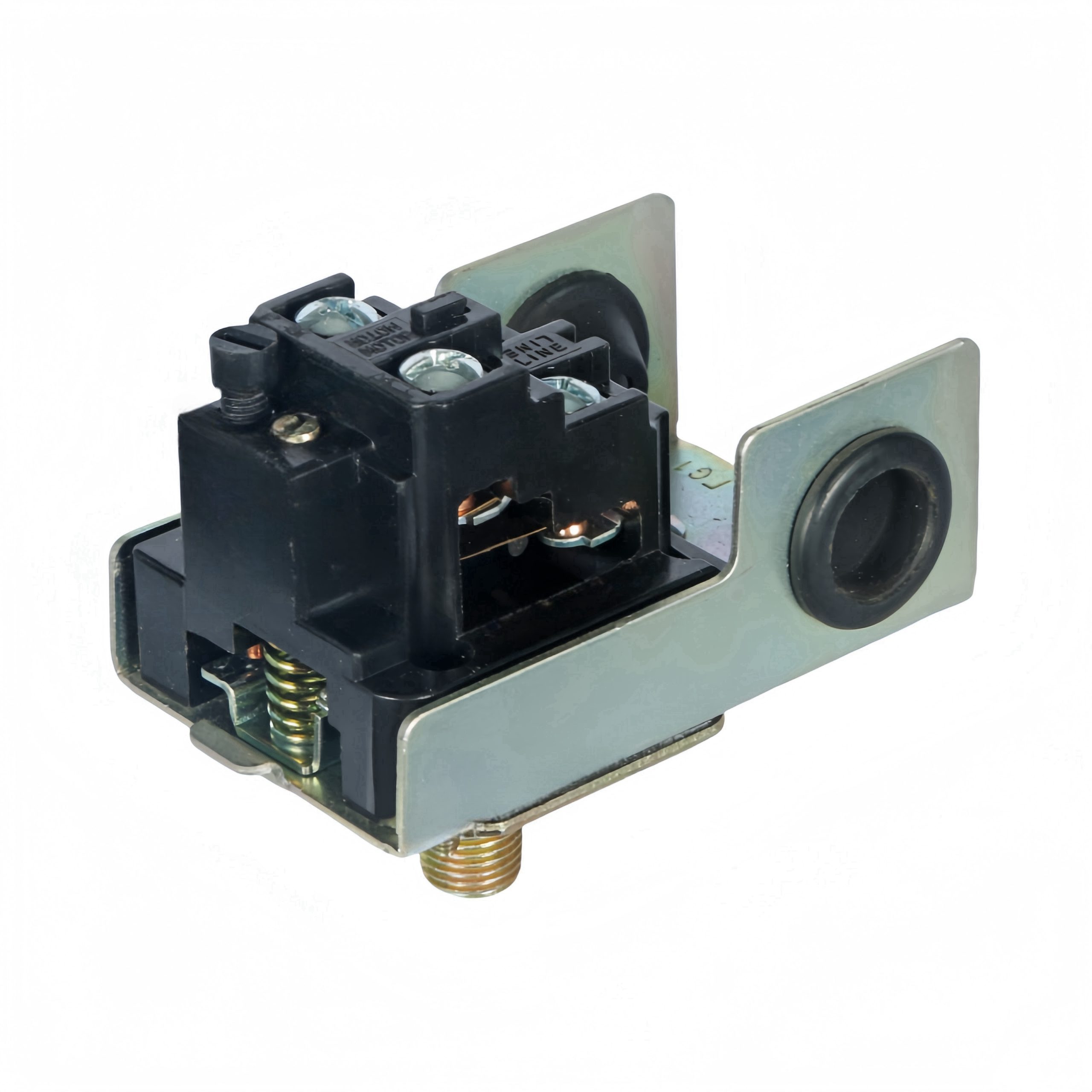

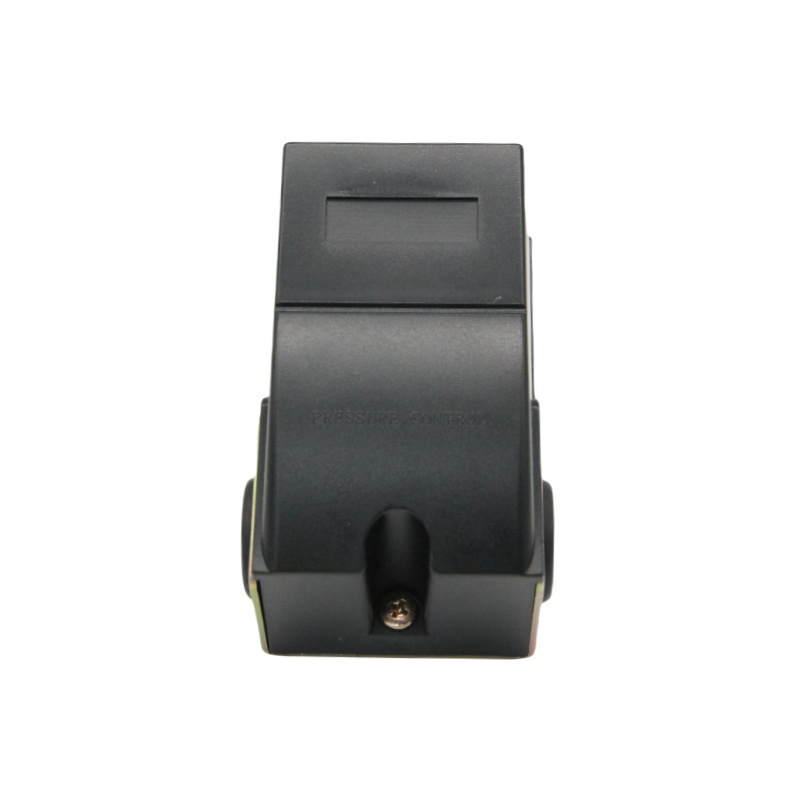

Mechanical Pressure Controller JSK-5

Power frequency: 50/60Hz

Connections: R 1inch

Adjustable pressure range: 1.2 – 3.0bar

Protection rating: IP65

Max working temperature: 55 deg C

Max. power: 1.1kW

Starting pressure setting: 1.2bar, 1.5bar, 2.2bar

Max working pressure: 10bar

Max current: 10A for 1.1kw (1.5HP)

Build In Pressure Gauge

LED Control Panel Indicators

Power: Green LED light

Pump on: Yellow LED light

Failure: Red LED light

Reset button for manual start after water failure

Rugular Program

Forced start 10s

Stop with pressure keeping: Auto-stop after 10s

Drying runner protection: No water, stop after 10s

Model: MPC-2

Box size (cm): 15.2×12.8×23.2

Carton size (cm): 53×48×25

QTY/CTN: 12PCS

N.W (kg): 15

G.W (kg): 17
