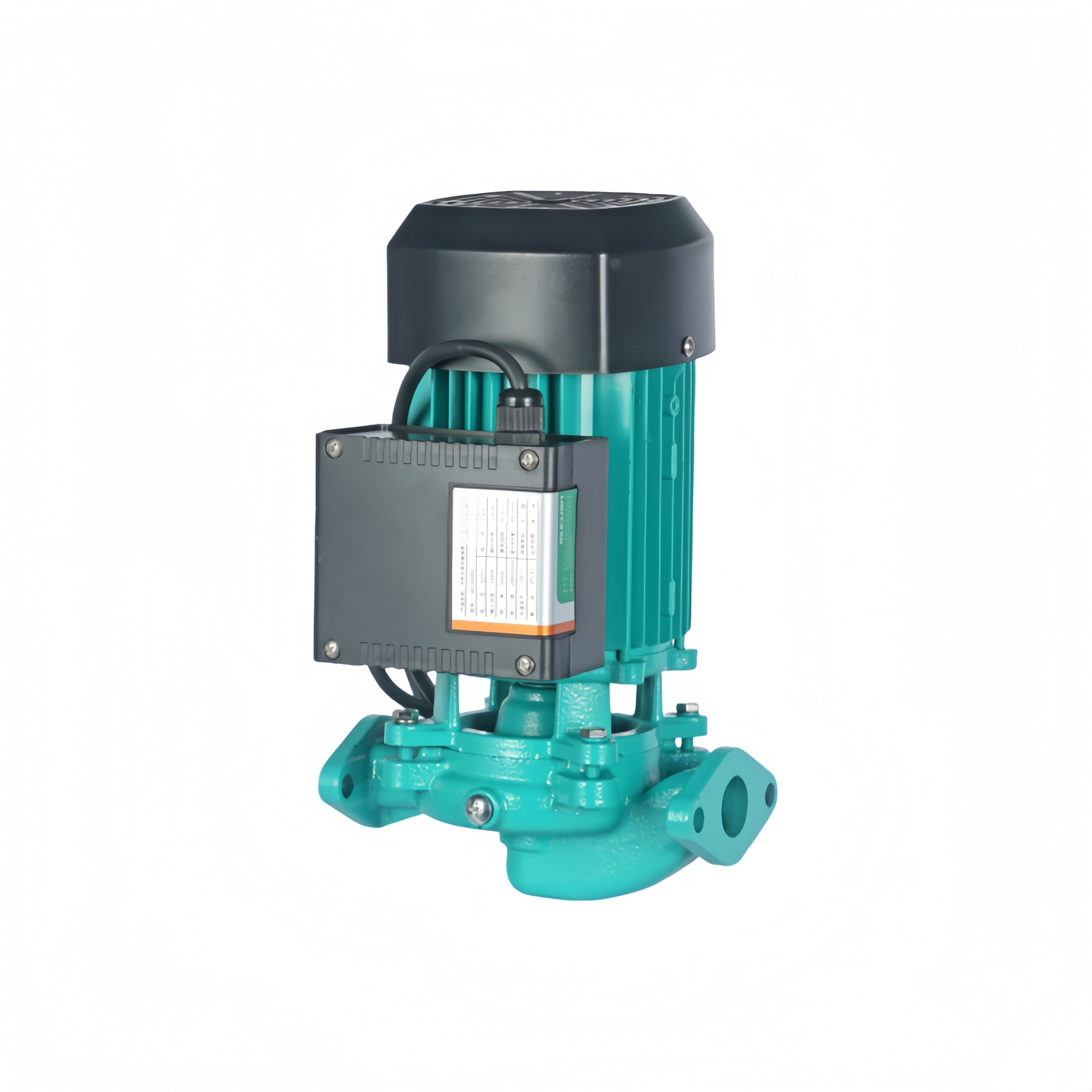

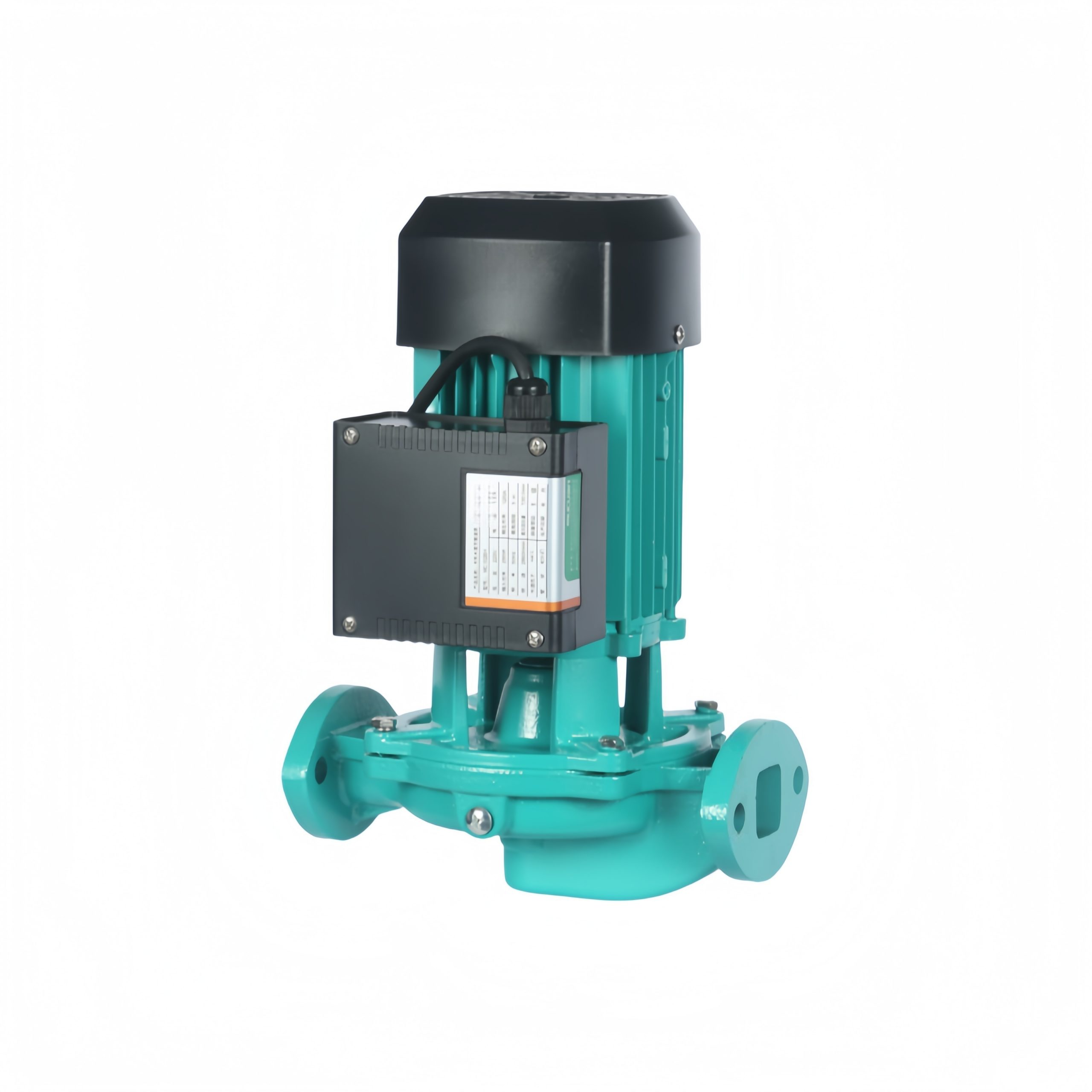

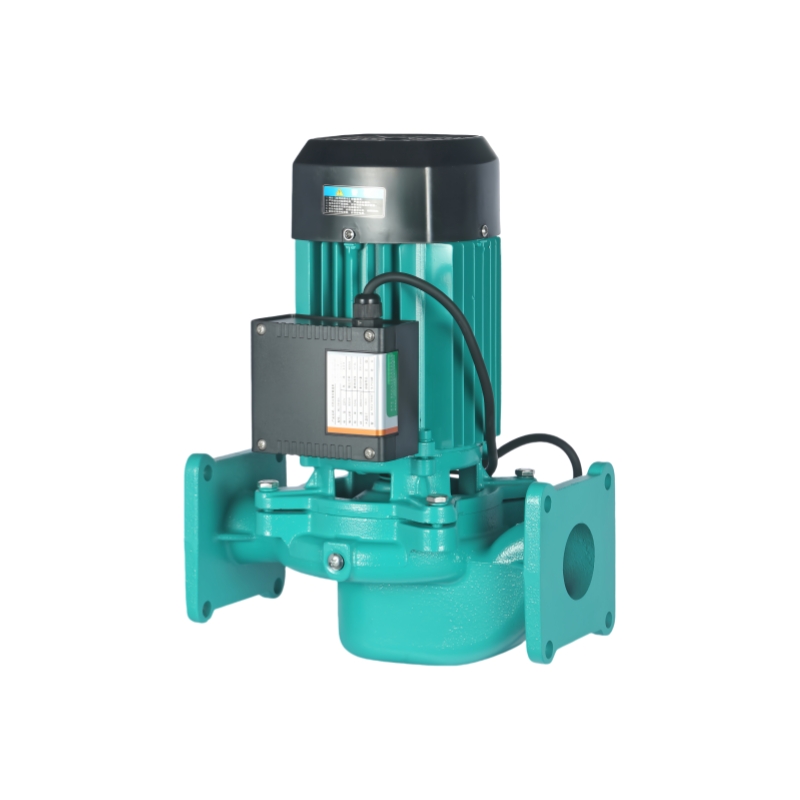

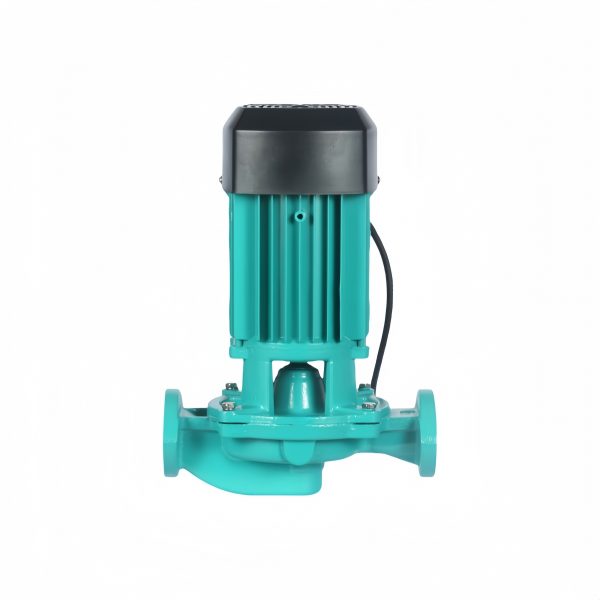

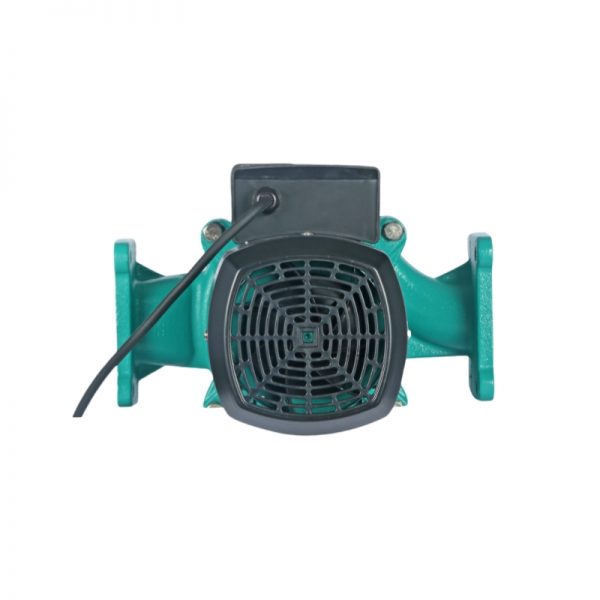

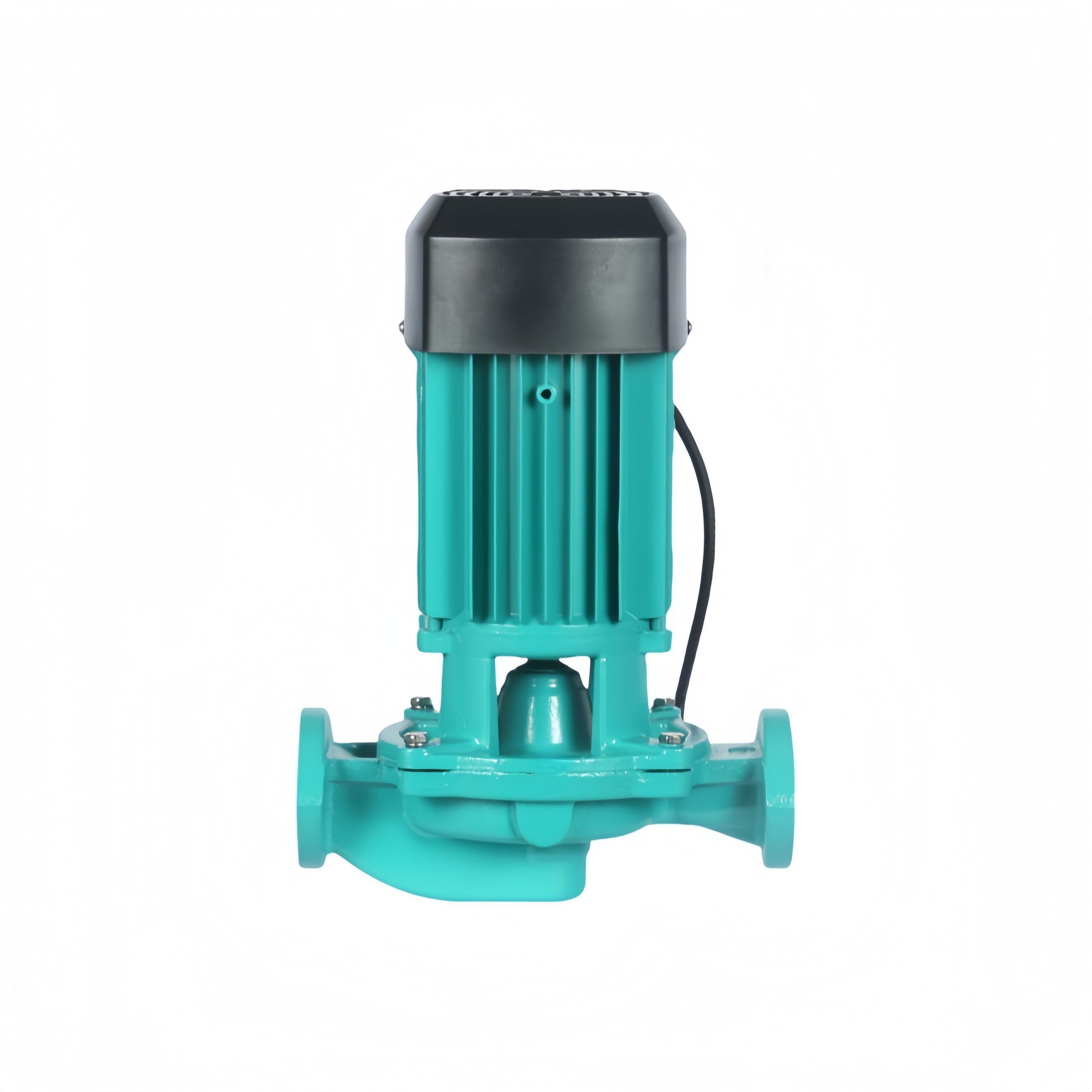

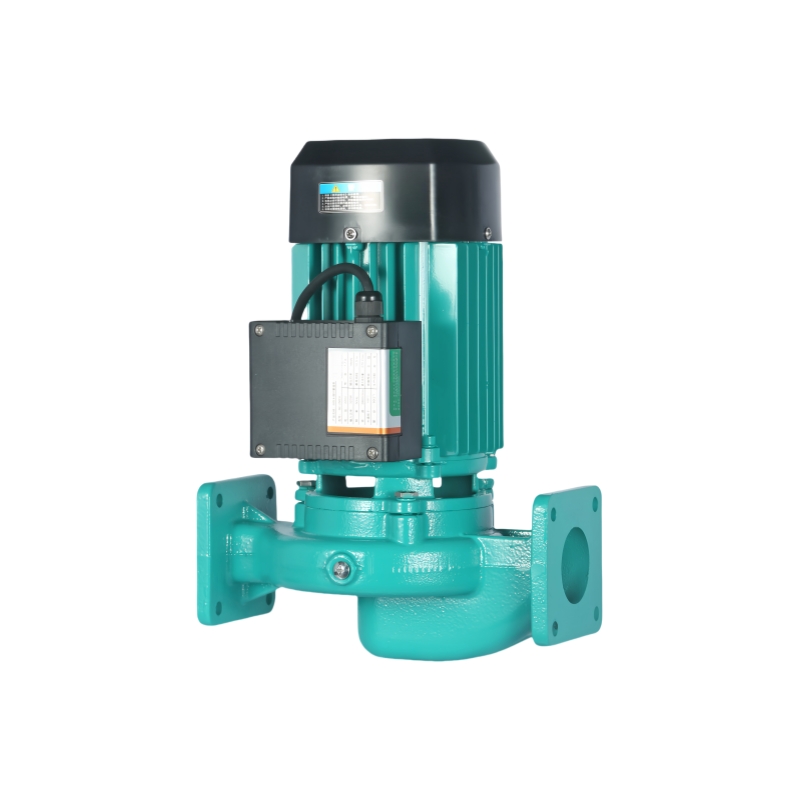

Booster Pipeline Circulation Pump EH
Booster Pipeline Circulation Pump EH - 图片 2
Booster Pipeline Circulation Pump EH - 图片 3
Booster Pipeline Circulation Pump EH - 图片 4
Booster Pipeline Circulation Pump EH - 图片 5
Booster Pipeline Circulation Pump EH - 图片 6

Booster Pipeline Circulation Pump EH

& Free Shipping

EH series pumps are hot water circulation pumps, suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, HVAC refrigeration cycle, etc., the transport medium is water and other liquids with physical and chemical properties similar to water.



send inquiry
分类： , ,

Parameter Table

MODEL MAX.POWER VOLTAGE MAX.FLOW MAX.HEAD INLET/OUTLET
INPUT
(KW)		 OUTPUT
(KW)		 （V） (L/min) (m) mm(in)
MC-043EH 0.12 0.120 220V,50Hz 85 5 25（1/2″）
MC-102EH 0.2 0.125 220V,50Hz 130 5 40（1 1/2″）
MC-256EH 0.32 0.18 220V,50Hz 270 10.5 50 (2″)
MC-257EH 0.52 0.18 220V,50Hz 300 13.5 50 (2″)
MC-751EH 0.9 0.40 220V,50Hz 300 17 50 (2″)
65 (2 1/2″)
